LM393EDR2G

The LM393EDR2G is a dual, high speed comparator from ON Semiconductor capable of processing signals up to 12 MHz. Housed in a miniature DFN-8 package, it provides precision analog signal comparison while maximizing PCB space.

Key Features:

• 12 MHz unity gain bandwidth
• 50 μA typical operating current
• 150mV typical input offset voltage
• Independent V+ / V- power supplies
• -40°C to 125°C operating temperature range
• Compact 1.5mm x 1.5mm DFN-8 package

Enables high speed analog comparisons for demanding applications.

Extremely low power usage simplifies battery-powered circuit designs.

Independent rails support flexible differential and single-ended inputs.

Tiny footprint maximizes board density for analog/mixed-signal systems.

Suitable for industrial, test & measurement and medical instrumentation.

Ideal for audio/video processing, signal detection and data acquisition.

Simplifies precision comparison needs within stringent space constraints.

High performance analog building block optimized for PCB real estate.

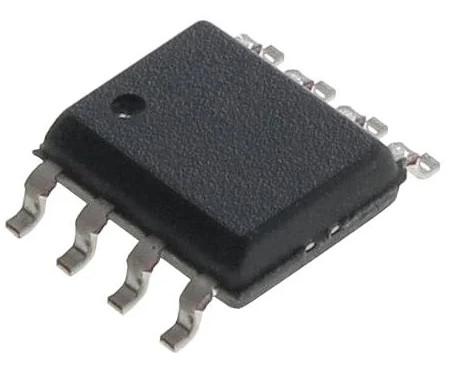

LM393EDR2G onsemi Images
